EAW Model ASR 690e Installation Speaker Systems

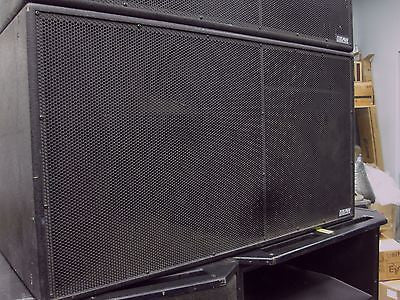

EAW ASR 690e installation series speaker systems - The ASR690e is a three way system, featuring 2 x 12" woofers in a manifold loaded arrangement, a single 10" horn loaded mid-range speaker, and a 1.4" compression driver/horn high end section.
The cabinet is set up as a two way electronically crossed over speaker between the bass section and the mid/hi section, with an internal passive crossover taking care of the mid-range/high frequency crossover. If you prefer, you can also cross the system over as a three way active design.
The ASR 690e is a rectangular non-arrayable system intended for flown rigging in installed sound applications. The fly rated cabinets have extensive 3/8" steel rigging points built in to them to facilitate easy & safe hanging of the cabinets. All the drivers have been carefully tested and found to be in good working order. The cabinet's inputs are via barrier strip input terminals.
The ASR 690e system is rated for max SPL of about 140 db/spl, and each caninet weighs in at about 175 pounds. The rated dispertion of the system is 90 degress horizontal by 45 degrees vertical.
Come in and hear em' play !
