Description

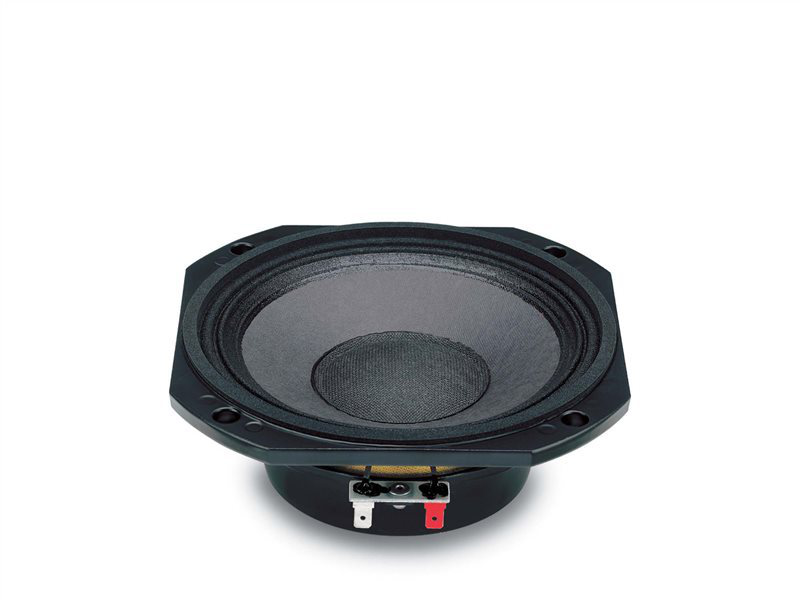

The 6NM410 is a high-performance 6" midrange driver designed for both horn-loaded and direct-radiating applications. It performs equally well in sealed or reflex enclosures, with cabinet volumes as small as 2 liters, making it ideal for compact, high-output designs.
An extremely powerful external neodymium motor assembly delivers high flux density with minimal power compression and excellent thermal stability. This results in outstanding force factor, high power handling, and an exceptional power-to-weight ratio suitable for demanding professional use.
Thermal performance is further enhanced by the encapsulated magnetic structure, which maximizes contact between the back plate and the basket for efficient heat dissipation. The curvilinear cone and surround, developed using advanced computer-aided vibrational modeling, push unwanted resonance modes outside the usable frequency range—ensuring clean, accurate midrange reproduction even at high output levels.
Santon Audio is a proud partner of 18 Sound audio products.
Key Features
-
High sensitivity: 102 dB SPL (1W / 1m)
-
45 mm (1.77") edge-wound aluminum voice coil
-
180 W AES power handling
-
High-efficiency neodymium motor
-
Excellent sound quality with low distortion
-
Ultra-shallow depth: 58 mm (2.3")
-
Suitable for horn-loaded and direct-radiating midrange systems
Specifications
-
Nominal Diameter: 152 mm (6")
-
Nominal Impedance: 8 Ω
-
AES Power Handling: 180 W
-
Continuous Power Handling: 240 W
-
Sensitivity: 101.5 dB
-
Frequency Range: 150 – 6,300 Hz
-
Voice Coil Diameter: 45 mm (1.77")
-
Voice Coil Material: Aluminum
